What is the rapid tooling process?
Views: 361 Update date: Dec 20,2023
Rapid tooling refers to the process of quickly creating tooling, which includes molds or dies, to produce prototype parts or low-volume production runs. The primary goal of rapid tooling is to reduce the time and cost associated with traditional tooling methods. It is commonly used in industries such as product development, automotive, aerospace, and electronics. There are several techniques and technologies employed in rapid tooling, and the choice depends on the specific requirements of the project. Here are some common rapid tooling processes:1. CNC Machining:
CNC (Computer Numerical Control) machining involves the use of computer-controlled milling machines to create molds or dies from a variety of materials, such as aluminum or steel. This method is known for its precision and is suitable for producing high-quality tooling quickly.2. 3D Printing/Additive Manufacturing:
Additive manufacturing technologies, including 3D printing, can be used to create tooling directly from digital models. This is particularly useful for complex geometries and intricate designs. Materials like thermoplastics or metals can be used depending on the specific 3D printing technology.
3. Electroforming:
Electroforming is a process where a metallic layer is deposited onto a pattern or substrate through electrodeposition. This technique is suitable for creating intricate and detailed tooling, often used in microfabrication or electronics.4. Soft Tooling/Rapid Silicone Molding:

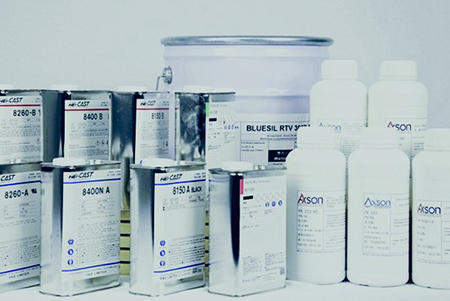

Soft tooling involves the use of materials like silicone or other elastomers to create molds for low-volume production. This method is cost-effective and allows for the rapid iteration of designs.5. Injection Molding Inserts:
Instead of creating a full mold, inserts can be produced using rapid tooling techniques and inserted into a standard injection molding tool. This allows for faster turnaround times and reduced costs.6. Direct Metal Laser Sintering (DMLS):
DMLS is a metal 3D printing technology that utilizes lasers to selectively sinter metal powder, layer by layer, to create fully dense metal components. It can be used for producing metal inserts or molds.Rapid tooling offers advantages such as faster production, reduced costs, and the ability to iterate on designs more quickly during the product development process. However, the choice of rapid tooling method depends on factors like material requirements, production volume, and the level of detail needed in the final parts.
