What is rapid prototyping injection molding?

Rapid prototyping injection molding is a manufacturing process that combines elements of rapid prototyping and traditional injection molding to quickly produce prototypes and low-volume production parts. This process is particularly useful for testing and validating designs before committing to expensive tooling for large-scale production.

Here's a breakdown of the key components of rapid prototyping injection molding:

Rapid Prototyping Techniques: The process often starts with the creation of a prototype using rapid prototyping methods such as 3D printing, CNC machining, or other additive manufacturing technologies. These techniques allow for the quick and cost-effective production of a physical model based on a digital design.

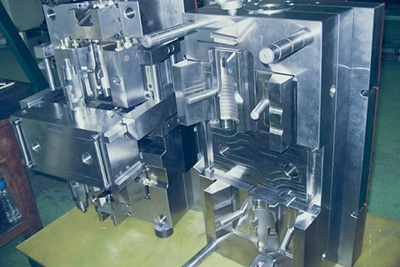

Injection Molding: Once the prototype is validated and final adjustments are made, the next step involves creating molds for injection molding. Injection molding is a traditional manufacturing method where molten plastic or other materials are injected into a mold cavity, creating a three-dimensional part. This is a highly efficient and cost-effective method for producing large quantities of parts.

Rapid Tooling: Instead of using conventional, time-consuming tooling processes, rapid prototyping injection molding often employs rapid tooling techniques. These tooling methods are faster and more cost-effective than traditional tooling processes, making them suitable for low-volume production runs.

Low-Volume Production: The primary goal of rapid prototyping injection molding is to bridge the gap between prototyping and full-scale production. It allows manufacturers to produce a small quantity of parts quickly and at a lower cost compared to traditional production methods.

Material Selection: The choice of materials in rapid prototyping injection molding can vary based on the requirements of the prototype or low-volume production. Common materials include various thermoplastics, elastomers, and other injection-moldable materials.

By integrating rapid prototyping with injection molding, companies can accelerate the product development cycle, reduce costs, and test designs more efficiently. This approach is particularly beneficial for industries where rapid iteration and quick validation of designs are crucial, such as product development, automotive, electronics, and consumer goods.
